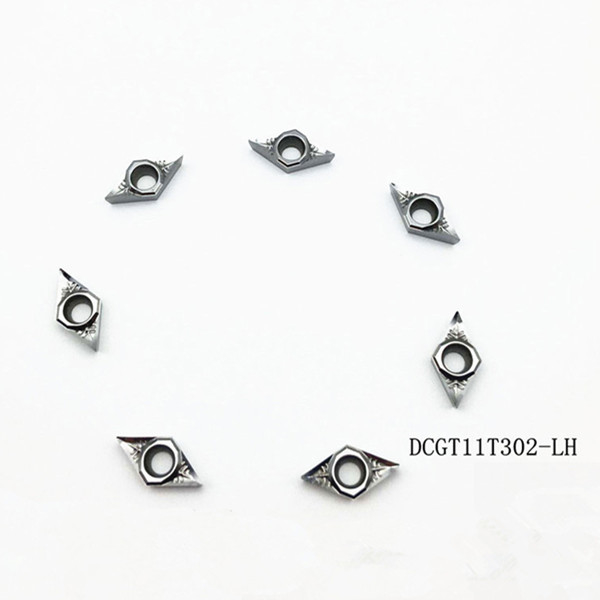

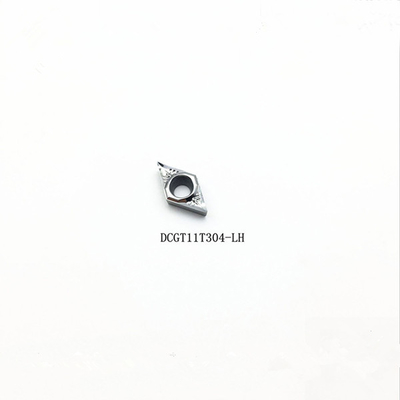

Red Hardness DCGT11T304 Tungsten Carbide Inserts For Aluminum 92 HRA
|Product Name||Cast Steel Carbide Insert For Aluminum||Sample||Acceptable|
DCGT11T304 Tungsten Carbide Insert,
Tungsten Carbide Inserts 92 HRA,
DCGT11T304 Carbide Inserts For Aluminum
DCGT11T304 Cast Steel High Red Hardness Tungsten Carbide Insert For Aluminum
The company specializes in research and development of ST1035 material "Santon brand" aluminum blade blank, with high cost performance, high wear resistance, high surface polishing finish and excellent blank geometry size characteristics, widely recognized by customers, become the first choice of aluminum blade processing tool enterprises blank;
DCGT11T304 blade meaning:
D represents 55° diamond, C represents 7° method back Angle, G represents precision code, T represents chip chute and clamping form (cylindrical hole + single-sided chamfering 40~60°), 11 represents cutting edge length (mm), T3 represents blade thickness 3.97mm, 04 represents tip fillet radius 0.4mm
|Grade||Performance typical value||Characteristics & Applications||ISO Code||Equivalent Grades|
|Density (g/cm3)||TRS (N/mm2)||Hardness (HRA)|
|ST1035||14.3-14.55||2800||91.5-92.5||Extra fine substrate,high strength,good resistance to impact,vibration and wear resistance,good red hardness,roughing and heavy milling for gray cast iron,nodular cast iron, non-ferrous metal,roughing for non-metallic materials.||K||k30|
Chengdu Santon Cemented Carbide Co., Ltd. is a professional manufacturer of cemented tungsten carbide (hard metal) products used for a wide variety of industries and applications. We are offering a full range of sintered carbide grades and grain sizes in both cobalt and nickel binders. We can manufacture small and large scale carbide products as per your drawing.
Our Company has established complete QA system; we can provide not only all kinds of high quality standard cemented carbide products such as machine-clamped inserts,brazing inserts and high accuracy coated inserts for clients who are engaged in machining of ferrous metals ,non-ferrous metals and non-metals ; but also various non-standard cutting tools and hard wearing parts according to customers' requirement . We can produce not only extensive used cemented carbide materials like P type,M type and k type,but also new types to satisfy users special needs.
