P20 Carbide Inserts For Stainless Steel C2 ANSI 1910TRS external turning insert

Place of Origin SICHUAN
Brand Name Santon
Certification ISO
Model Number custom
Minimum Order Quantity 50
Price Negotiable
Packaging Details plastic box
Delivery Time 15-25 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 2 miliion one month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade P20-P25 Product Name Stainless Steel Carbide Milling Inserts
Model Numcustomizedber Customized Sample Acceptable
Hardness 90.4 To 91.5HRA Usage External Turning Insert
Color Custom Size ISO Standard, Also Can Be Customized
High Light

P20 Carbide Inserts For Stainless Steel

,

C2 ANSI Carbide Inserts For Stainless Steel

,

C2 ANSI Cemented Carbide Inserts

Leave a Message
Product Description

P20~P25 For Milling Of Stainless Steel Carbide Milling Inserts





Grade Information:



Santon
Grade
ISO Grade ANSI Grade Physical and Chemical Property Performance & Applications
Density TRS Hardness
g/cm3 n/mm2 HRA
YT798 P20~P25 C2 12.3 1910 91.5 High toughness, better resistant to thermal shock crack and plastic deformation. Suitable for milling of structural alloy steel, alloy tool steel, as well as machining of high manganese steel and stainless steel.


Product Description:



Cemented carbide is the use of high hardness and high melting point of metal carbide (such as WC TiC TaC NbC, etc.) powder and metal binder (such as Co Ni Mo, etc.) after high pressure molding, and then sintered at high temperature powder metallurgy products therefore, the hardness of cemented carbide wear resistance Both have high heat resistance, allow far higher cutting speeds than high speed steel, high machining efficiency and can cut hard materials such as hardened steel.



Certifications:

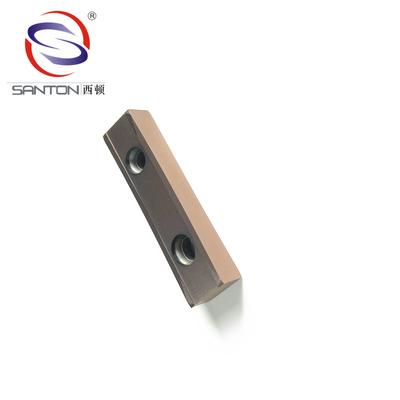

P20 Carbide Inserts For Stainless Steel C2 ANSI 1910TRS external turning insert 0


Company Information:


   Santon has strong independent developing ,designing and producing capabilities.Compare with the other companies in the same field in China,Santon is the first company which has been given the certificate of Qualified Management System ISO9001 by UKAS Attestation Company.

   Today, the vertical blade realizes the function of "milling belt grinding". Processing shape: inner circle outer circle, plane. Processing objects: steam, diesel engine cylinder block cylinder head, steam turbine blades, large bearing inside and outside surface processing, crankshaft processing. Processing materials are generally: steel, cast steel, cast iron (ductile iron, gray cast iron, vermicular cast iron), high temperature alloy, titanium alloy, aluminum alloy and so on.

   Welcome to distribute or sell 'Santon' brand products on commision basis.

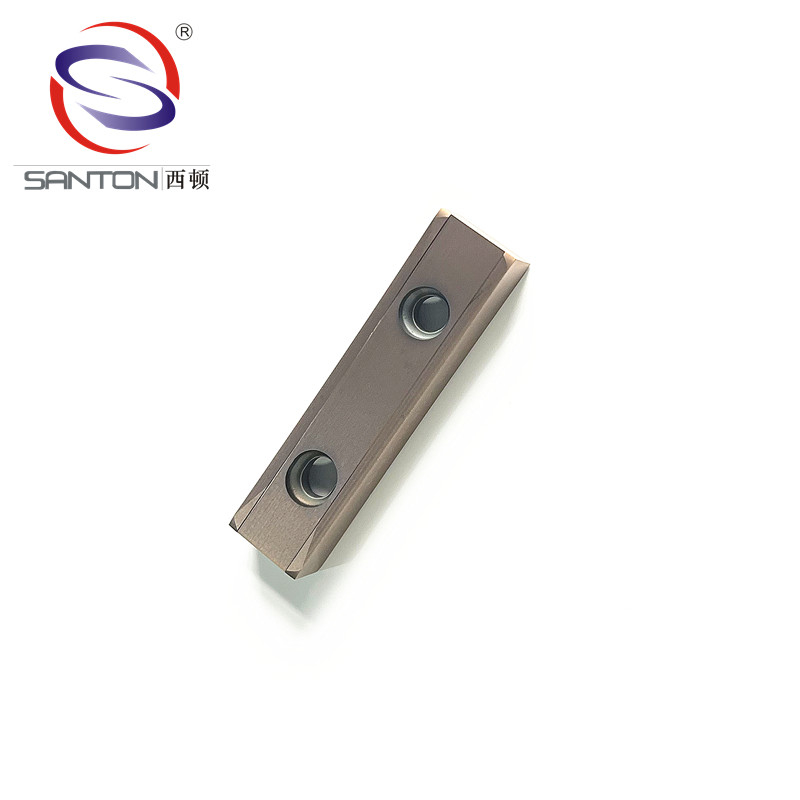

P20 Carbide Inserts For Stainless Steel C2 ANSI 1910TRS external turning insert 1

   P20 Carbide Inserts For Stainless Steel C2 ANSI 1910TRS external turning insert 2

FAQ:

Q. Are you a manufacturer or a trading company?
A. We are a professional manufacturer with 10 years of experience of producing and selling carbiede inserts.
Q. What is your main products?
A. Our main products includes cemented carbide plates, strips, blanks, saw tips, geological and mining bits, brazed tips, indexable carbide inserts, wear parts,snow plow inserts, tungsten carbide pins, etc.
Q. what's the payment term?
A. We accept Western union, Onetouch, T/T, and L/C. 30% T/T deposit and 70% balance before shipment, or against copy of BL, or L/C at sight.
Q. What about your delivery time?
A. Usually it will take about 25 - 30 days for production.But for new molds, the lead time may need 10days more to open molds. If you need the goods urgently, we could try to push for and shorten the delivery time.
Q. What is your minimum order quantity(MOQ)?
A. No limit for MOQ. For non-standard products, mold fee need to be paid, but can be refunded later.
Q. What is your warranty?
A. We extend a 100% satisfaction guarantee on all items. if you’re not completely satisfied with our products ,we’ll replace them or refund the fee
