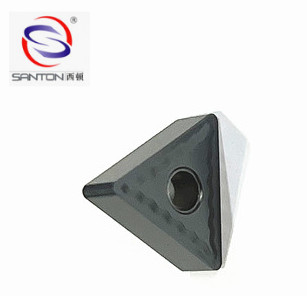

TNMG Carbide Inserts W-Co-Ti CNC Milling Cutter Carbide Inserts

Place of Origin China
Brand Name Santon
Certification ISO
Model Number TNMG160408-ZM or Customized
Minimum Order Quantity 50
Price Negotiable
Packaging Details Plastic boxes inside and cartons outside
Delivery Time 15-25 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 2 million per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Hardness 90.4-92.8HRA Grade ISO Standard, Also Can Be Customized
Color Various Sample Accepted
Marketing Type Ordinary Product Material Tungsten Carbide, Cobalt,etc
Coating CVD Product Name All Kind Of CNC Carbide Inserts
High Light

TNMG Carbide Inserts


W Co Ti Cutter Carbide Inserts


CNC Milling Carbide Inserts

Leave a Message
Product Description

TNMG All Kind Of P Class M Class K Class CNC W-Co-Ti Alloys Carbide Inserts



Product Information:


Carbide cutting tool carbide blade cutting performance is excellent, is widely used in CNC turning. Carbide inserts are available the standards are divided into three categories :P category M category K category. Class P - suitable for processing steel, long chip malleable cast iron (equivalent to China YT class).


M class - suitable for processing austenitic stainless steel, cast iron, high manganese steel, Taiwan gold cast iron, etc. (equivalent to our country

Class YW).

K - suitable for processing cast iron, cold cast iron, short Chip malleable cast iron, non-titanium alloy (equivalent to China's YG class).


What is the difference between TNMG and TCMT

Blade Angle is different. TN has no back Angle suitable for processing cast iron, steel and other materials, TC has back Angle suitable for processing non-ferrous metals, aluminum alloy, copper alloy, etc

TNMG Carbide Inserts W-Co-Ti CNC Milling Cutter Carbide Inserts 0



Grade & Application:


Santon Grade ISO Grade ANSI Grade Physical and Chemical Property Performance & Applications
Density TRS Hardness
g/cm3 n/mm2 HRA
YT5 P30 C5 12.9 2200 90.5 Best strength, high impact and shock resistance among W-Co-Ti alloys, but comparatively lower wear resistance. Suitable for rough turning, rough planning, and semi-finish planning of carbon steel, and alloy steel including forgings, stamped parts, and cast iron surfaces during intermittent cutting.
YW2 M20 _ 12.9 1880 91 Higher wear resistance and strength, resistant to high impact load. Suitable for roughing and semi-finishing of ordinary steel, and cast irons as well as refractory steel, high manganese steel, and high-grade alloy steel, etc
YG6X K15 C3 14.9 1890 91.5 Fine grain WC alloy, wear resistance higher than YG6, strength close to YG6. Suitable for machining chilled alloy cast irons, and refractory alloy steel, as well as finishing of ordinary cast irons.



   TNMG Carbide Inserts W-Co-Ti CNC Milling Cutter Carbide Inserts 1


Company information:
    Santon alloy is a focus on the carbide cutting blades research and development, production, sales in the integration of high and new technology and new materials enterprises, the company's main products are made with the blade, nc blades, PCD/CBN matrix and aluminum processing blade four series, can provide users with rich technology content and the application value of the pre-sale, sale and after-sale service. The vertical blade series products are the core products of the company's strategic development, positioning as "high-end, alternative to import".

    Santon specializes in manufacturing a wide array of cemented carbide blades, inserts, knives for woodwoking tools, wood cutters in wear and impact resistant grades, greatly prolonged the cutter life over their steel counterparts.

    The company's market scope is divided into international market and domestic market. The domestic market faces the whole country, mainly concentrated in northeast, East China, South China, southwest China, Taiwan and other regions.The international market is global, mainly concentrated in Europe and America (The United States, Germany, Canada, Russia), South America (Mexico, Brazil), Southeast Asia (Vietnam, Thailand), India, Pakistan and so on.

TNMG Carbide Inserts W-Co-Ti CNC Milling Cutter Carbide Inserts 2

TNMG Carbide Inserts W-Co-Ti CNC Milling Cutter Carbide Inserts 3

TNMG Carbide Inserts W-Co-Ti CNC Milling Cutter Carbide Inserts 4




Q. Are you a manufacturer or a trading company?
A. We are a professional manufacturer with 10 years of experience of producing and selling carbiede inserts.
Q. What is your main products?
A. Our main products includes cemented carbide plates, strips, blanks, saw tips, geological and mining bits, brazed tips, indexable carbide inserts, wear parts,snow plow inserts, tungsten carbide pins, etc.
Q. what's the payment term?
A. We accept Western union, Onetouch, T/T, and L/C. 30% T/T deposit and 70% balance before shipment, or against copy of BL, or L/C at sight.
Q. What about your delivery time?
A. Usually it will take about 25 - 30 days for production.But for new molds, the lead time may need 10days more to open molds. If you need the goods urgently, we could try to push for and shorten the delivery time.
Q. What is your minimum order quantity(MOQ)?
A. No limit for MOQ. For non-standard products, mold fee need to be paid, but can be refunded later.
Q. What is your warranty?
A. We extend a 100% satisfaction guarantee on all items. if you’re not completely satisfied with our products ,we’ll replace them or refund the fee
Q. Where is your market?
A. Our products are popular in Germany, America, Mexico, India, Russia, Indonesia, Malaysia, Bangladesh, South Africa,etc.
